FOIL KIT 1550

DESCRIPTION

DEVELOPED IN CONJUNCTION WITH THE HS FRONT WINGS THE HS 232 REDUCED DRAG AND AREA IMPROVES ACCELERATION, SPEED AND MANEUVERABILITY.

The layup has been re-engineered so the ultra frothers out there are free to Chop Shop the tips down to a HS 212 cm2 - without structural issues.
The HS 232 is compatible with the entire CF wing range, it’s the next level performance upgrade.

Construction

• The tail wing has a foam core wrapped in the highest quality Carbon keeping it light and super rigid.
• The Titanium screw inserts are in keeping with our philosophy of zero corrosion materials throughout the entire product range.
• The unique flow fences improve stability by minimizing the disruption of turbulent flow from the front wing, mast and fuselage.

Dimensions
Tail Wing area: 232cm2 or Chop Shop 212cm2
Wingspan: 387mm
Weight: 140 g

*Comes complete with screws and protective cover.

DESCRIPTION

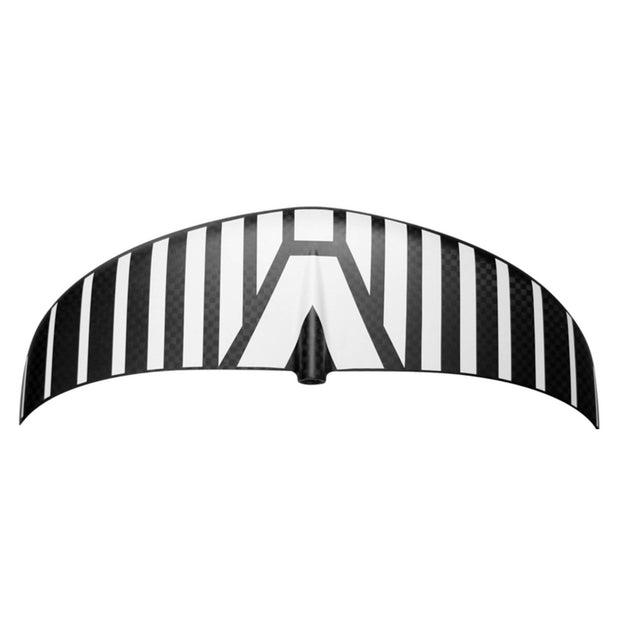

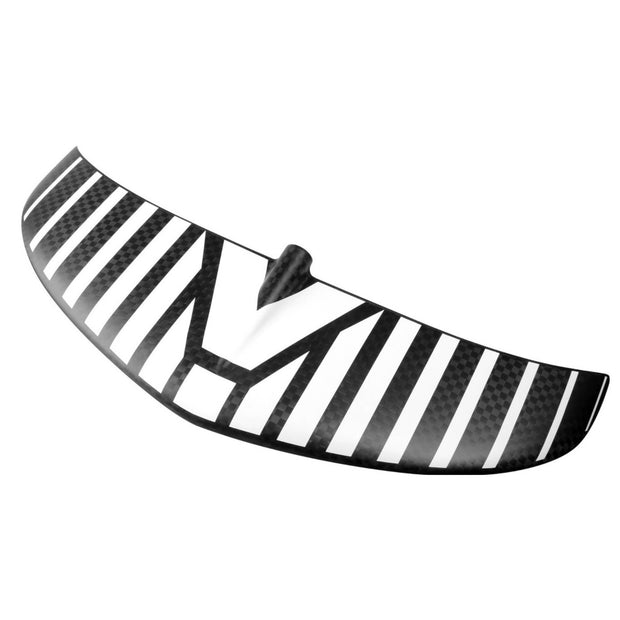

THE HIGH SPEED 1550 WING IS A PERFORMANCE SURF WING. SUPER STABLE, RESPONSIVE AND WITH GREAT GLIDE MAKE IT THE CHOICE FOR CARVING TURNS OR SHREDDING WAVES.

Developed form the ultra-successful CF1600 the HS1550 is the logical step for progressive riders wanting to take their riding to the next level.

Construction

• Construction is based around a high-density foam core, which is wrapped with 100% IM and High Modulus Carbon.
• The main wings are shaped and refined for maximum stability and predictability at all speeds
• The foil sections have been carefully designed by one of the world’s foremost sport wing designers.

Dimensions
Wing area: 1548 cm2 (239 in2)
Wingspan: 800 mm
Weight: 1200 g

*Comes complete with screws and protective cover.

DESCRIPTION

THE TC60 ALLOWS GREATER MANEUVERABILITY AND IS SUITED TO THE ACCOMPLISHED RIDER. THE SHORTER LENGTH OFFERS WAVE RIDERS TIGHTER CARVING TURNS AND QUICKER RESPONSE FOR SHREDDING WAVES.

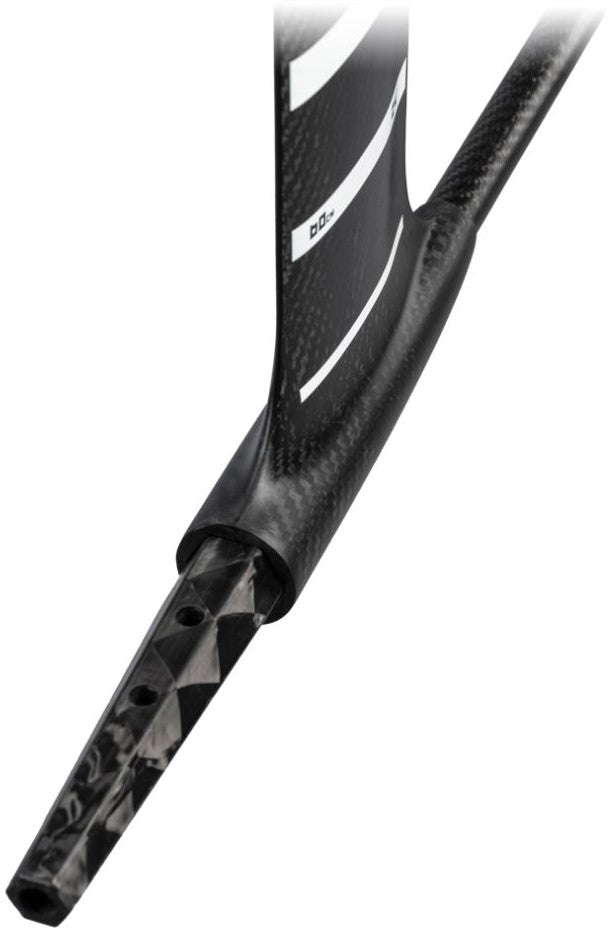

The Armstrong HEX Fuselage is a ground breaking work of art in terms of engineering and design.

The fuselage has a solid Titanium core running throughout its length. The core is then shrouded in 5mm solid wall Carbon tube. The multi wing HEX fitting for the mast and front wing gives 360 degree surface contact, maximising the load distributing area.

This unique fuselage construction easily handles the highly leveraged opposing flex loads as the mast and wings are directly keyed into the Titanium core, taking your ride to the next level.

Weight: 407 g

DESCRIPTION

The unique quad c beam core layup delivers a mast with smooth consistent reactive flex, generating sweet handling response and better stability by smoothing out bumps and flexing precisely to drive you through turns.

The V2 masts also feature bombproof zero corrosion Bi Directional Titanium Washer and Titanium T Nut system, which creates a rock solid connection between mast and board.

The V2 mast construction and shape combine to make a mast that will deliver predictably every time.

Mast Length Guide

Choosing the right length mast is important depending on your ability and intended use.

- 72cm /28.5" The go to Foil Surf mast. An easy all rounder for all foil sports.
- 85cm /33.5" The 'do everything mast' : Intermediate/Advanced. SUP, Downwind, Kite, Wake, and Tow in Surfing.
- 100cm/39.5" This is the choice for experienced Kite, Tow in Surfing and big wave charging.

Mast construction details

- Our unique mast construction was developed in conjunction with composite experts who worked on Team New Zealand America’s Cup foils.

- The quad C beam mast core delivers ‘dynamic reactive flex’ that equates to better strength, stability and control without compromising weight.

- The mast layup is futuristic: at the heart is a multi-piece core that gets wrapped with carbon that has optimised fiber orientation to maximise the potential of the materials.  100% Carbon cloth outer shell ensures a part that is robust and will last.
