FOIL KIT 1200

DESCRIPTION

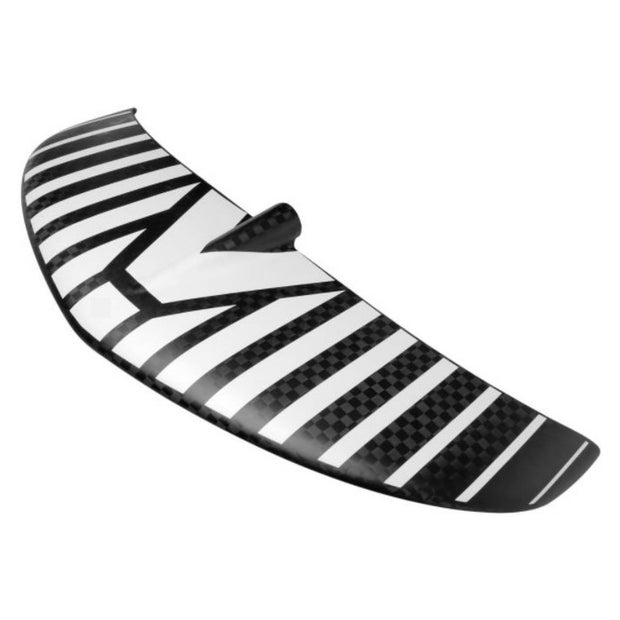

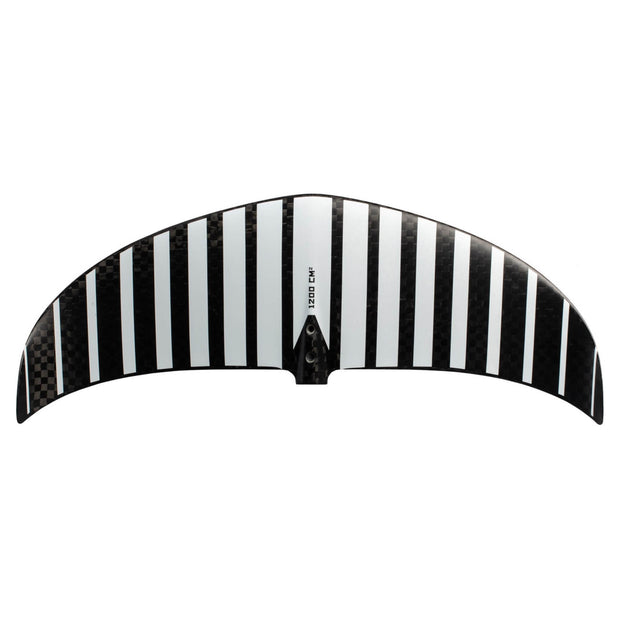

THE CARVING FREERIDE 1200 WING IS ALL ABOUT TAKING YOUR SURF FOILING TO THE NEXT LEVEL.

Extremely stable yet rips turns rail to rail like a dream and pumps to connect when required. If you want to surf foil then look no further.

Construction

• Construction is based around a high-density foam core, which is wrapped with 100% IM and High Modulus Carbon.
• The main wings are shaped and refined for maximum stability and predictability at all speeds
• The foil sections have been carefully designed by one of the world’s foremost sport wing designers.

Dimensions
Wing area: 1200cm2 (186in2)
Wingspan: 675mm
Weight: 950g

*Comes complete with screws and protective cover.

DESCRIPTION

THE TC60 ALLOWS GREATER MANEUVERABILITY AND IS SUITED TO THE ACCOMPLISHED RIDER. THE SHORTER LENGTH OFFERS WAVE RIDERS TIGHTER CARVING TURNS AND QUICKER RESPONSE FOR SHREDDING WAVES.

The Armstrong HEX Fuselage is a ground breaking work of art in terms of engineering and design.

The fuselage has a solid Titanium core running throughout its length. The core is then shrouded in 5mm solid wall Carbon tube. The multi wing HEX fitting for the mast and front wing gives 360 degree surface contact, maximising the load distributing area.

This unique fuselage construction easily handles the highly leveraged opposing flex loads as the mast and wings are directly keyed into the Titanium core, taking your ride to the next level.

Weight: 407 g

DESCRIPTION

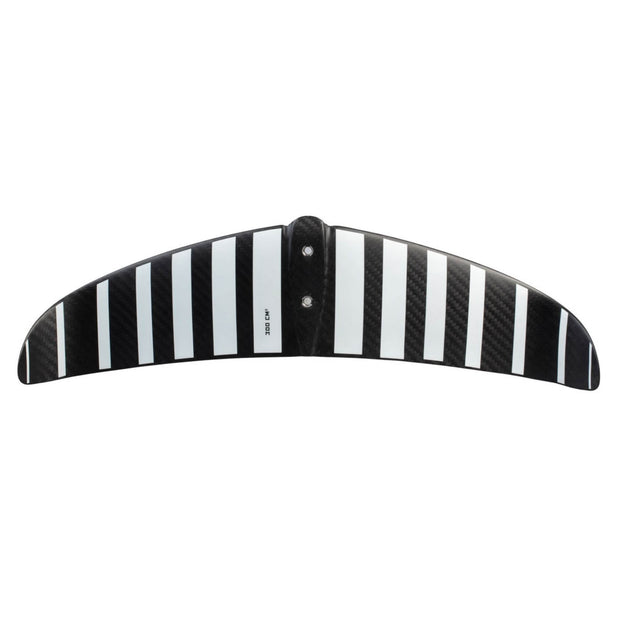

THE CF300 TAIL WING IS A GREAT ALL ROUNDER.

It incorporates the perfect amount of anhedral shape in the center and dihedral at the tips to allow an overall high level of stability with smooth progressive pitch control at all speeds and bank angles. Ideal for rookie to intermediate riders, all foil sports.

Construction

• The tail wing has a foam core wrapped in the highest quality Carbon keeping it light and super rigid.
• The Titanium screw inserts are in keeping with our philosophy of zero corrosion materials throughout the entire product range.
• The unique flow fences improve stability by minimizing the disruption of turbulent flow from the front wing, mast and fuselage.

Dimensions
Tail Wing area: 300 cm2 (46in2)
Wingspan: 398 mm
Weight: 180 g

*Comes complete with screws and protective cover.

DESCRIPTION

The unique quad c beam core layup delivers a mast with smooth consistent reactive flex, generating sweet handling response and better stability by smoothing out bumps and flexing precisely to drive you through turns.

The V2 masts also feature bombproof zero corrosion Bi Directional Titanium Washer and Titanium T Nut system, which creates a rock solid connection between mast and board.

The V2 mast construction and shape combine to make a mast that will deliver predictably every time.

Mast Length Guide

Choosing the right length mast is important depending on your ability and intended use.

- 72cm /28.5" The go to Foil Surf mast. An easy all rounder for all foil sports.
- 85cm /33.5" The 'do everything mast' : Intermediate/Advanced. SUP, Downwind, Kite, Wake, and Tow in Surfing.
- 100cm/39.5" This is the choice for experienced Kite, Tow in Surfing and big wave charging.

Mast construction details

- Our unique mast construction was developed in conjunction with composite experts who worked on Team New Zealand America’s Cup foils.

- The quad C beam mast core delivers ‘dynamic reactive flex’ that equates to better strength, stability and control without compromising weight.

- The mast layup is futuristic: at the heart is a multi-piece core that gets wrapped with carbon that has optimised fiber orientation to maximise the potential of the materials.  100% Carbon cloth outer shell ensures a part that is robust and will last.
